FS00: Fourier Series Roadmap, Motivation, and Learning Path

Fourier series answer a remarkable question:

How can a complicated periodic function be reconstructed from simple sinusoidal building blocks?

A square wave has sharp corners. A sawtooth has jumps. A vibrating string can have an arbitrary initial shape. A periodic driving force can be highly nonsinusoidal.

Yet all of these can be analyzed by decomposing the function into harmonics.

The central form is

∞ a0- ∑ f(x) ∼ 2 + [an cos(n ω0x) + bnsin(nω0x )]. n=1

(1)

The coefficients

a0, an, bn

(2)

measure how strongly the corresponding basis functions occur in the original function.

This roadmap is designed for self-learning. The aim is not to memorize Equation (1) and immediately begin inserting functions into formulas. Instead, the series builds the subject from the ideas that make the formulas inevitable:

periodicity,
harmonics,
inner products,
orthogonality,
projection,
convergence,
eigenfunctions,
spectral decomposition.

Every major formula will be derived rather than merely stated.

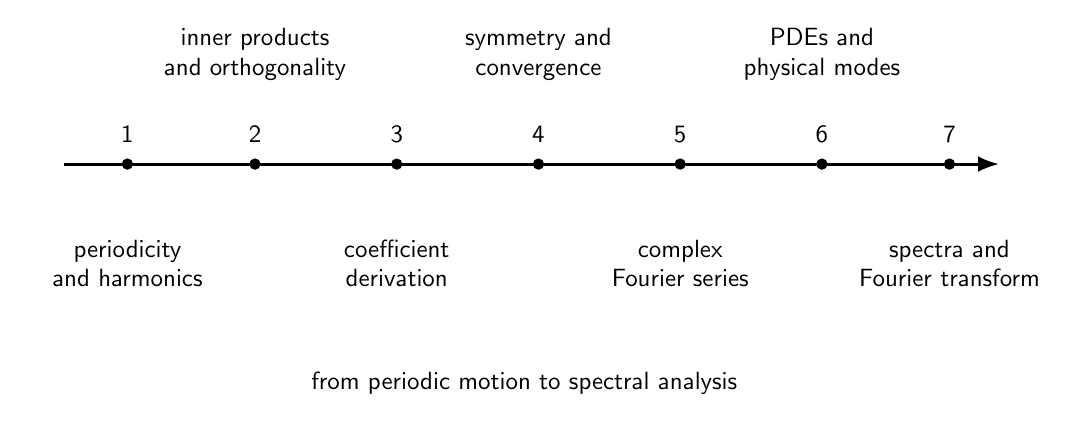

Figure 1. The Fourier-series learning path. The subject begins with periodic motion and orthogonality, develops into coefficient extraction and convergence, and then becomes a general tool for waves, partial differential equations, spectra, and Fourier transforms.

1 What a Fourier series is

A Fourier series is an expansion of a periodic function in sinusoidal basis functions.

For a function with period

T,

(3)

the fundamental angular frequency is

2π ω0 = T-.

(4)

The frequencies

ωn = nω0, n = 1,2,3,...

(5)

are the harmonics of the fundamental.

A real Fourier series combines sine and cosine functions at those harmonic frequencies. The complex form instead uses

einω0x.

(6)

The two forms contain the same information.

The important conceptual point is that the Fourier coefficients are not arbitrary fitting constants. They are projections of the function onto orthogonal basis functions. The first half of this series is devoted to making that statement concrete.

2 The geometric idea behind the entire series

For an ordinary vector in three dimensions,

v = v e + v e + v e . x x y y z z

(7)

If the basis vectors are orthonormal, then

vx = v ⋅ ex.

(8)

The dot product extracts one component of the vector.

Fourier analysis does something closely analogous with functions.

A function is expanded in basis functions such as

1, cos(nx), sin(nx ).

(9)

The role of the dot product is played by an integral:

∫ b ⟨f,g⟩ = f (x)g(x)dx. a

(10)

Orthogonality means

⟨f,g⟩ = 0.

(11)

The Fourier coefficient of one basis function is obtained by projecting the function onto that basis function.

This vector-to-function analogy is the conceptual spine of FS02 through FS05 and returns again in FS11.

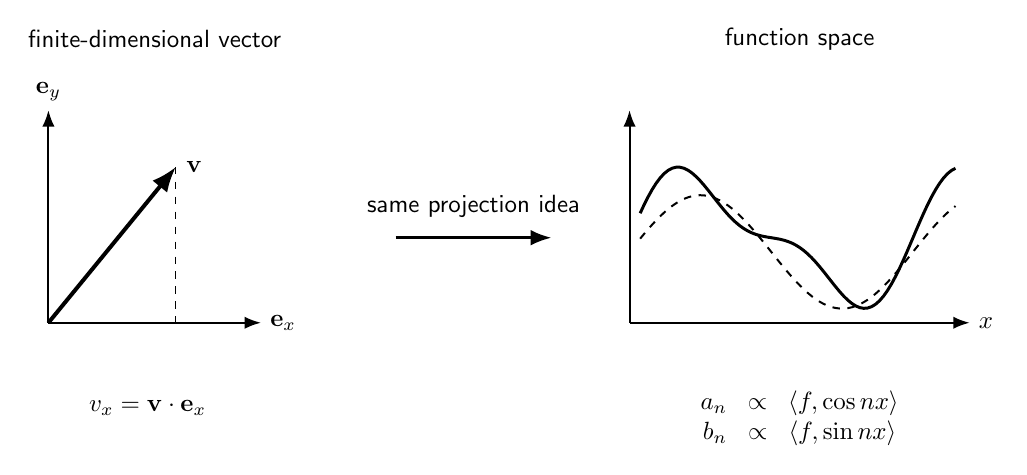

Figure 2. Fourier coefficients are function-space analogues of vector components. A dot product extracts a component along a vector basis direction; an integral inner product extracts a component along a function basis direction.

3 How the lectures are designed

The main lectures use the same learning pattern whenever possible.

Begin with a concrete geometric or physical question.
Introduce only the notation needed for that question.
Derive the required integral identity from elementary algebra or trigonometry.
Carry the derivation through every intermediate line.
Check units, parity, signs, and limiting cases.
work at least one complete example numerically or symbolically.
Interpret the result geometrically or physically.
End with a short set of exercises that test the exact derivation just developed.

Companion E1 entries then provide longer worked problems and complete solutions.

The series intentionally repeats important derivations in more than one language. For example, Fourier coefficients will first appear through trigonometric orthogonality, later through function-space projection, later through least-squares minimization, and finally through complex exponentials.

That repetition is a feature. It exposes the same structure from several viewpoints.

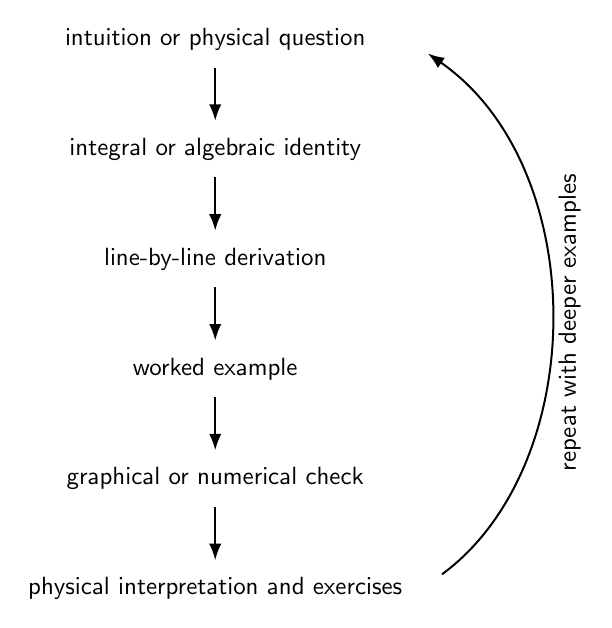

Figure 3. Recurring self-learning cycle. Each major topic moves from intuition to an identity, then to a derivation, a worked example, a numerical or graphical check, and finally a physical interpretation.

4 Stage I: periodic functions and orthogonality

The first stage develops the language needed before any Fourier coefficient formula is introduced.

FS01: Periodic Functions, Harmonics, and Why Fourier Series Exist

FS01 begins with periodicity itself.

Topics include:

period T,
frequency f₀ = 1∕T,
angular frequency ω₀ = 2π∕T,
harmonics nω₀,
amplitude and phase,
superposition of sinusoidal functions,
the idea of approximating a nonsinusoidal periodic waveform by adding harmonics.

The article introduces the general Fourier-series form but does not yet derive the coefficient formulas.

Companion: FS01E1. Graphical harmonic-building exercises and numerical partial sums.

FS02: Inner Products of Functions

FS02 begins with ordinary vectors and gradually generalizes the dot product to functions:

∫ b ⟨f,g⟩ = f (x)g(x)dx. a

(12)

The article develops:

function norms,
orthogonality,
normalization,
projection onto one function,
the analogy between finite-dimensional vectors and functions.

Companion: FS02E1. Function inner-product and projection problems.

FS03: Orthogonality of Sines and Cosines

FS03 proves the trigonometric orthogonality relations from product-to-sum identities.

For example,

1 cos nx cosmx = -[cos((n − m )x) + cos((n + m )x)]. 2

(13)

The article treats separately the cases

n = m

(14)

and

n ⁄= m.

(15)

It derives the sine-sine, cosine-cosine, and sine-cosine integrals in full.

Companion: FS03E1. Orthogonality proofs and integral drills.

5 Stage II: deriving the Fourier coefficients

This stage derives the real Fourier-series formulas from first principles.

FS04: Derivation of the Fourier Cosine Coefficients

Start from a proposed expansion. Multiply both sides by

cos(mx ),

(16)

integrate over a full period, and watch every orthogonal term vanish except the mth cosine term.

The result on [−π,π] is

∫ π a = 1- f (x)cos(mx ) dx. m π −π

(17)

The article emphasizes that this is component extraction, not a memorized trick.

Companion: FS04E1. Line-by-line cosine-coefficient derivations.

FS05: Derivation of the Sine and Constant Coefficients

Repeat the complete projection argument for

∫ π bm = 1- f (x)sin(mx )dx, π −π

(18)

and derive the constant term

∫ -1 π a0 = π f (x)dx. −π

(19)

The article explains carefully why the series contains

a0 2--

(20)

rather than a₀.

Companion: FS05E1. Sine and constant-coefficient derivations.

FS06: Fourier Series on a General Interval [−L,L]

FS06 rescales the basis from [−π,π] to [−L,L] and derives

( ) ( ) cos nπx- , sin nπx- . L L

(21)

It derives the general coefficient formulas and relates the interval length to the physical period.

Companion: FS06E1. Rescaling and general-interval problems.

FS07: First Complete Fourier Series: the Square Wave

FS07 performs the first complete waveform decomposition.

It derives

[ ] f (x) = 4- sinx + 1-sin3x + 1sin 5x + ⋅⋅⋅ π 3 5

(22)

for the standard odd square wave.

Partial sums are plotted so the learner can watch the waveform emerge harmonic by harmonic.

Companion: FS07E1. Square-wave coefficient and partial-sum problems.

FS08: Sawtooth and Triangle Waves

FS08 derives both series and compares their coefficient decay.

The sawtooth naturally produces coefficients of order

1- n,

(23)

while a triangle wave produces coefficients of order

-1-. n2

(24)

This begins the connection between smoothness and spectral decay.

Companion: FS08E1. Sawtooth and triangle-wave derivations.

6 Stage III: symmetry, projection, and mathematical structure

FS09: Even and Odd Functions

Derive the parity rules directly from symmetric integration.

For an even function,

bn = 0.

(25)

For an odd function,

an = 0.

(26)

The goal is to make symmetry an active calculation tool rather than a shortcut stated without proof.

Companion: FS09E1. Parity and coefficient-elimination problems.

FS10: Half-Range Sine and Cosine Series

A function specified only on

0 < x < L

(27)

can be extended evenly or oddly.

FS10 derives how those two choices create cosine-only or sine-only expansions. This becomes essential for boundary-value problems.

Companion: FS10E1. Half-range extension and coefficient problems.

FS11: Fourier Series as Projection onto an Infinite-Dimensional Basis

FS11 returns to FS02 and writes the general projection formula

∑ -⟨f,ϕn⟩- f ∼ ⟨ϕn, ϕn⟩ϕn. n

(28)

Fourier series then become one example of an eigenfunction expansion.

This is the conceptual bridge to Hilbert spaces, Sturm-Liouville theory, quantum mechanics, and normal modes.

FS12: Mean-Square Error and Why Fourier Coefficients Are Optimal

Define a finite trigonometric approximation S_N and the squared error

∫ π 2 EN = |f(x) − SN (x)| dx. −π

(29)

Then differentiate with respect to the unknown coefficients:

∂EN--= 0, ∂EN-- = 0. ∂ak ∂bk

(30)

The Fourier coefficient formulas reappear from least-squares minimization.

This provides a direct conceptual bridge to the PhysicsLibrary calculus-of-variations and optimization material.

Companion: FS12E1. Least-squares derivations and finite Fourier approximations.

FS13: Parseval’s Theorem and Energy in Harmonics

FS13 begins with a finite partial sum and uses orthogonality to evaluate its squared norm.

The limiting result is

∫ ∞ 1- π 2 a20- ∑ 2 2 π |f (x )|dx = 2 + (a n + bn). −π n=1

(31)

The physical interpretation is spectral energy accounting.

Companion: FS13E1. Parseval and harmonic-energy problems.

7 Stage IV: convergence and discontinuities

FS14: What Does It Mean for a Fourier Series to Converge?

FS14 distinguishes:

pointwise convergence,
uniform convergence,
mean-square convergence,
absolute convergence.

The article emphasizes pictures and counterexamples before theorem statements.

FS15: Dirichlet Conditions and Values at Discontinuities

At a jump discontinuity x₀, a Fourier series approaches the midpoint of the one-sided limits:

f(x −) + f(x+) SN (x0) −→ ----0-------0--. 2

(32)

The article develops one-sided limits carefully and explains why the square-wave series takes its midpoint value at a jump.

Companion: FS15E1. Convergence-at-jump calculations.

FS16: Gibbs Phenomenon

FS16 studies the oscillatory overshoot near a jump.

It distinguishes two effects:

the oscillatory region narrows as more harmonics are added,
the limiting overshoot amplitude does not vanish.

Numerical plots make the effect visible.

Companion: FS16E1. Partial-sum and overshoot experiments.

FS17: Differentiating and Integrating Fourier Series

FS17 derives formal term-by-term differentiation and integration and then asks when those operations are justified.

Starting from

a0 ∞∑ f(x) = --+ [ancos nx + bnsinnx ], 2 n=1

(33)

formal differentiation gives

∞ f′(x) = ∑ [− na sin nx + nb cosnx ]. n n n=1

(34)

Companion: FS17E1. Series differentiation and integration problems.

8 Stage V: complex Fourier series

FS18: Euler’s Formula and the Complex Exponential Basis

FS18 reviews

i𝜃 e = cos𝜃 + isin 𝜃

(35)

and derives

ei𝜃 + e−i𝜃 cos𝜃 = ---------, 2

(36)

i𝜃 −i𝜃 sin 𝜃 = e--−--e---. 2i

(37)

Positive and negative frequencies then arise naturally.

FS19: Derivation of the Complex Fourier Coefficients

Start from

∞ ∑ inx f(x ) = cne . n= −∞

(38)

Multiply by e^−imx, integrate, derive complex-exponential orthogonality, and obtain

∫ -1- π −inx cn = 2 π f (x)e dx. −π

(39)

Companion: FS19E1. Complex coefficient derivations.

FS20: Equivalence of Real and Complex Fourier Series

Derive

cn = 1(an − ibn), n > 0, 2

(40)

and

c = 1(a + ib ). −n 2 n n

(41)

For real functions,

∗ c−n = cn.

(42)

The article interprets conjugate symmetry geometrically and spectrally.

Companion: FS20E1. Conversions between real and complex forms.

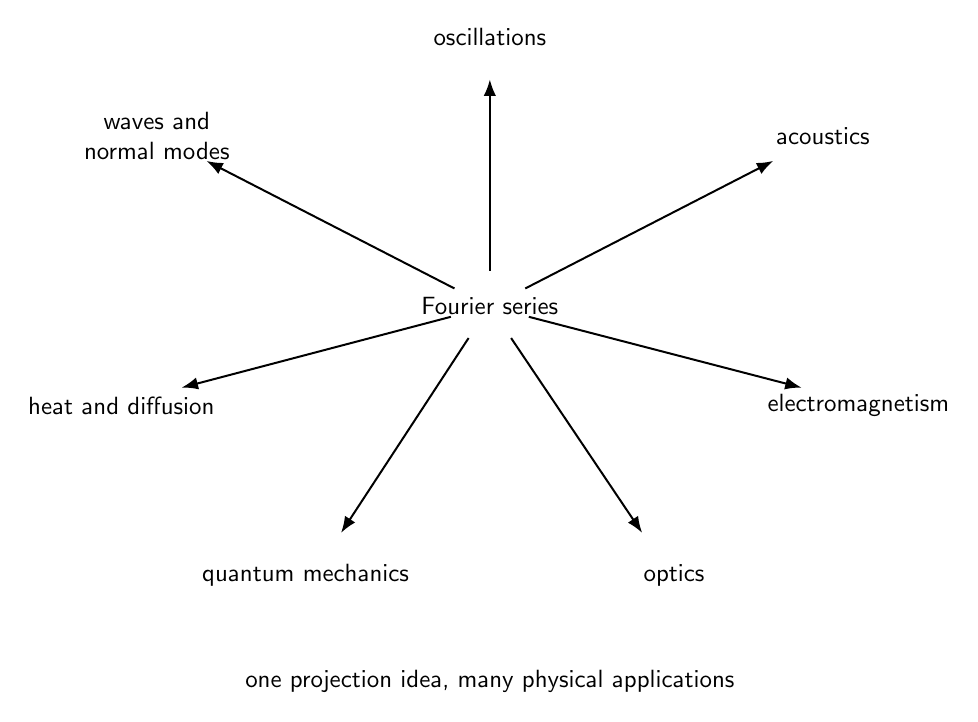

9 Stage VI: differential equations and physics

Fourier series become especially powerful when the basis functions are also eigenfunctions of differential operators.

FS21: Separation of Variables and Why Fourier Series Solve PDEs

Starting from an ansatz

u(x, t) = X (x)T (t),

(43)

FS21 shows how a partial differential equation separates into ordinary differential equations and an eigenvalue problem.

The boundary conditions select a discrete family of spatial eigenfunctions. Those eigenfunctions are exactly the functions used in the corresponding Fourier expansion.

FS22: Fourier Series Solution of the Vibrating String

Start from

2 2 ∂-y-= c2∂-y-, ∂t2 ∂x2

(44)

with fixed endpoints.

Derive

(n-πx) Xn (x ) = sin L ,

(45)

and

ωn = n-πc. L

(46)

Then expand an arbitrary initial displacement in that sine basis.

Companion: FS22E1. Complete vibrating-string initial-value problems.

FS23: Fourier Series Solution of the Heat Equation

Start from

∂T ∂2T ---= κ----. ∂t ∂x2

(47)

Derive modal decay factors of the form

e− κ(nπ∕L)2t.

(48)

The physical lesson is that fine spatial structure decays faster than broad spatial structure.

Companion: FS23E1. Heat-equation initial-value problems.

FS24: Periodic Driving and Fourier Decomposition of Forcing

For

m ¨x + b˙x + kx = F (t),

(49)

write a periodic force as a Fourier series and solve the response to each harmonic independently.

The total solution follows by linear superposition.

This connects Fourier series directly to driven oscillations and steady-state phasor methods.

Companion: FS24E1. Nonsinusoidal periodic forcing problems.

10 Stage VII: spectra and the bridge to Fourier transforms

FS25: Frequency Spectrum of a Periodic Function

FS25 interprets Fourier coefficients as a discrete spectrum.

Topics include:

spectral lines,
fundamental frequency,
harmonic amplitudes,
phase spectrum,
coefficient decay,
bandwidth in a periodic signal.

FS26: From Fourier Series to the Fourier Transform

Let the period become very large:

T → ∞.

(50)

Then the harmonic spacing

Δ ω = 2π- T

(51)

approaches zero.

FS26 derives how a discrete sum becomes a continuous integral and develops

∫ ∞ −iωt F(ω ) = f (t)e dt, −∞

(52)

and

1 ∫ ∞ iωt f (t) = --- F (ω)e dω. 2π −∞

(53)

Companion: FS26E1. The series-to-transform limit worked in detail.

FS27: Wave Packets, Localization, and Dispersion

Construct

∫ i(kx− ωt) ψ(x,t) = A(k )e dk.

(54)

Develop:

phase velocity,
group velocity,
narrowband approximation,
dispersion,
packet spreading.

FS27 connects directly to the PhysicsLibrary waves sequence and to M06-10 on Fourier analysis, wave packets, and dispersion.

11 Advanced continuation

The first 27 lectures develop the core Fourier-series path. FS28 through FS31 show that Fourier series are part of a much broader eigenfunction-expansion framework.

FS28: Sturm-Liouville Theory and Generalized Fourier Series

Develop

[ ] -d- dy- dx p(x )dx + [λw (x) − q(x)]y = 0.

(55)

Derive weighted orthogonality and generalized eigenfunction expansions.

Companion: FS28E1. Elementary Sturm-Liouville eigenvalue problems.

FS29: Legendre Series

Derive Legendre orthogonality and expansion coefficients on

− 1 ≤ x ≤ 1.

(56)

Connect the expansion to gravity, electrostatics, and spherical geometry.

Companion: FS29E1. Legendre projection problems.

FS30: Bessel Series and Cylindrical Eigenfunctions

Develop Bessel orthogonality and radial eigenfunction expansions.

Connect directly to circular membranes, cylindrical waves, and the existing PhysicsLibrary Bessel-function material.

Companion: FS30E1. Bessel-series coefficient problems.

FS31: Fourier Series in Two Dimensions

For a rectangle, derive expansions such as

( ) ( ) ∞∑ ∑∞ m πx nπy f(x,y ) = Amn sin -L--- sin L--- . m=1 n=1 x y

(57)

Then derive the double-projection formula for A_mn.

Applications include rectangular membranes, heat flow, and waveguides.

Companion: FS31E1. two-dimensional coefficient and boundary-value problems.

12 Master roadmap table

The complete main-lecture sequence is summarized below.

ID	Lecture	Primary goal

FS01	Periodic Functions and Harmonics	Build periodicity, frequency, harmonic, phase, and superposition intuition.
FS02	Inner Products of Functions	Generalize vector dot products to function-space projection.
FS03	Orthogonality of Sines and Cosines	Prove the trigonometric orthogonality identities.
FS04	Fourier Cosine Coefficients	Derive a_n by projection.
FS05	Sine and Constant Coefficients	Derive b_n and a₀ and explain a₀∕2.
FS06	General Interval [−L,L]	Rescale the basis and coefficient formulas.
FS07	Square Wave	Perform the first full waveform decomposition.
FS08	Sawtooth and Triangle Waves	Compare spectra and coefficient decay.
FS09	Even and Odd Functions	Use symmetry to eliminate coefficients.
FS10	Half-Range Series	Build sine-only and cosine-only extensions.
FS11	Infinite-Dimensional Projection	Interpret Fourier series as basis expansion.
FS12	Mean-Square Optimality	Re-derive coefficients by least-squares minimization.
FS13	Parseval’s Theorem	Connect function norm to harmonic energy.
FS14	types of Convergence	Distinguish pointwise, uniform, and mean-square convergence.
FS15	Dirichlet Conditions	Understand convergence at discontinuities.
FS16	Gibbs Phenomenon	Study persistent overshoot near jumps.
FS17	Differentiating and Integrating Series	Learn when term-by-term operations work.
FS18	Euler Formula and Complex Basis	Build the complex-exponential representation.
FS19	Complex Fourier Coefficients	Derive c_n by complex projection.
FS20	Real versus Complex Form	Convert between a_n,b_n and c_n.
FS21	separation of variables	Explain why Fourier bases solve PDEs.
FS22	Vibrating String	Solve the wave equation by sine expansion.
FS23	heat equation	Solve diffusion by decaying Fourier modes.
FS24	Periodic Driving	Decompose a nonsinusoidal force into harmonic responses.
FS25	Frequency Spectrum	Interpret coefficients as spectral lines.
FS26	Fourier Transform Limit	Derive the continuous spectrum from the series.
FS27	Wave Packets and Dispersion	Build localized waves from continuous spectra.
FS28	Sturm-Liouville Theory	Generalize Fourier expansion to weighted eigenfunctions.
FS29	Legendre Series	Develop spherical-style orthogonal expansions.
FS30	Bessel Series	Develop cylindrical radial expansions.
FS31	Two-Dimensional Fourier Series	Extend projection to two spatial coordinates.

13 Dependency map

Not every article depends on every earlier article. The main dependency spine is

FS01 → FS02 → FS03 → FS04 –FS06 → FS07 –FS10.

(58)

After FS10, the series branches temporarily:

FS11–FS13 deepen the projection and energy viewpoint.
FS14–FS17 deepen convergence and series manipulation.
FS18–FS20 introduce the complex representation.

Those branches reunite before the PDE and spectral stages.

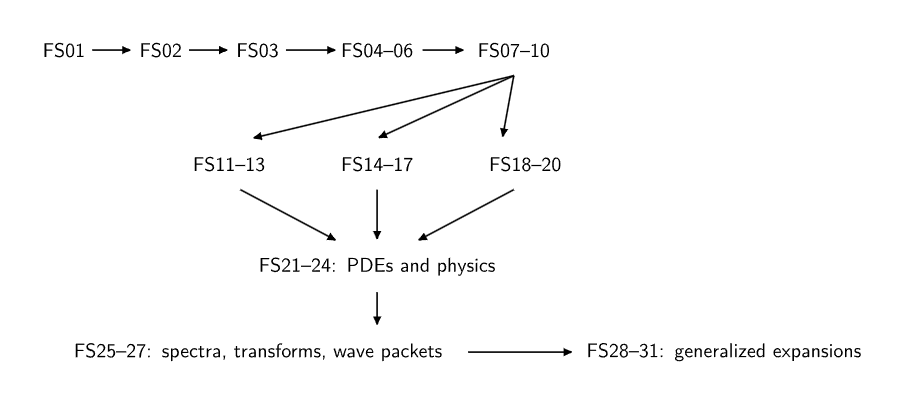

Figure 4. Simplified dependency map. The early orthogonality and coefficient-derivation sequence is the common trunk. Projection, convergence, and complex-form branches deepen different aspects before rejoining for PDEs, spectra, and transforms.

14 Recommended self-learning route

For a learner encountering Fourier series for the first time, the recommended route is not to rush to the transform.

The first milestone is

FS01 through FS08.

(59)

At that point the learner should be able to derive and compute Fourier series for several standard periodic functions.

The second milestone is

FS09 through FS17.

(60)

At that point the learner should understand symmetry, projection, least-squares optimality, energy, convergence, Gibbs behavior, and term-by-term operations.

The third milestone is

FS18 through FS24.

(61)

At that point Fourier series become a working tool for complex notation, waves, heat flow, and forced oscillation.

The fourth milestone is

FS25 through FS27.

(62)

At that point the discrete Fourier spectrum naturally develops into the Fourier transform and wave-packet picture.

FS28 through FS31 can then be treated as an advanced mathematical-physics continuation.

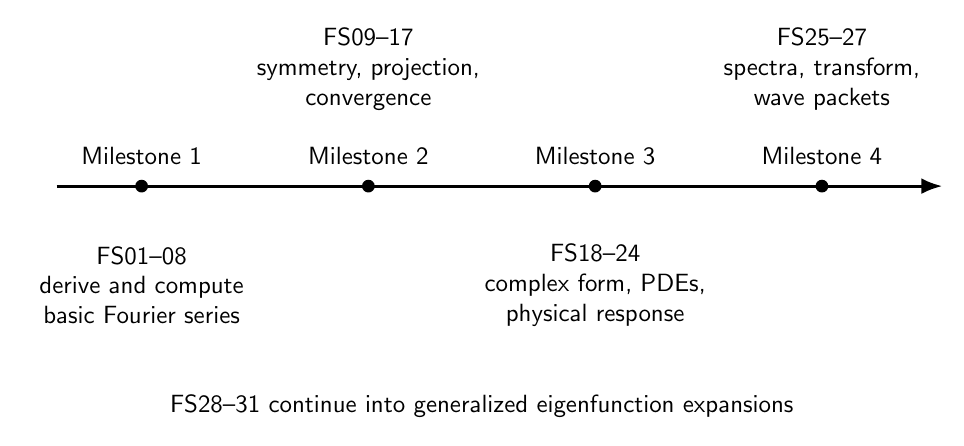

Figure 5. Four recommended self-learning milestones. Each milestone ends with a useful capability before the learner proceeds to the next level of abstraction.

15 Recommended companion problem articles

The following companions are especially valuable because the associated main lecture contains a derivation that benefits from repetition.

Companion	Worked focus

FS01E1	Harmonic addition, period, frequency, and partial-sum graphs.
FS02E1	function inner products, norms, orthogonality, and projections.
FS03E1	Trigonometric orthogonality proofs and integral drills.
FS04E1	Cosine-coefficient extraction from first principles.
FS05E1	Sine and constant coefficient derivations.
FS06E1	General-interval rescaling problems.
FS07E1	Square-wave Fourier series and partial sums.
FS08E1	Sawtooth and triangle-wave expansions.
FS09E1	Even/odd symmetry and coefficient elimination.
FS10E1	Half-range sine and cosine expansions.
FS12E1	Least-squares Fourier approximations.
FS13E1	Parseval and harmonic-energy calculations.
FS15E1	Convergence at discontinuities.
FS16E1	Gibbs-phenomenon numerical experiments.
FS17E1	Differentiation and integration of Fourier series.
FS19E1	Complex Fourier coefficients.
FS20E1	Conversion between real and complex representations.
FS22E1	Vibrating-string initial-value problems.
FS23E1	Heat-equation initial-value problems.
FS24E1	Periodic forcing of linear oscillators.
FS26E1	Detailed Fourier-series-to-transform limit.
FS28E1	Elementary Sturm-Liouville eigenvalue problems.
FS29E1	Legendre-series projection.
FS30E1	Bessel-series projection.
FS31E1	Two-dimensional Fourier expansions.

16 Connections to existing PhysicsLibrary material

The Fourier series sequence is mathematical, but its motivation is strongly physical.

It connects naturally to existing mechanics and waves articles.

simple harmonic motion supplies the basic sinusoidal building block.
driven harmonic motion explains frequency response to a single sinusoid.
Coupled Oscillators and Normal Modes introduce decomposition into independent modes.
Continuous strings show that boundary conditions select discrete mode shapes.
Circular membranes introduce Bessel-function eigenmodes.
M06-10 uses Fourier analysis to build wave packets and discuss dispersion.
The complex-number and phasor articles supply the exponential representation used in FS18 through FS20.
Calculus-of-variations material provides a natural connection to the least-squares minimization developed in FS12.

Fourier analysis also reaches beyond mechanics into Electromagnetism, acoustics, optics, quantum mechanics, signal processing, and numerical methods.

Figure 6. Fourier series sit at a junction between mathematical analysis and physical applications. Oscillations and normal modes motivate the basis, while PDEs, waves, acoustics, electromagnetism, optics, quantum mechanics, and signal analysis use the resulting spectral representation.

17 What the learner should be able to derive by the end

A successful pass through the core sequence should make the following results derivable rather than merely recognizable.

The sine and cosine orthogonality relations.
The real Fourier coefficient formulas.
The coefficient formulas on a general interval.
The square-wave, sawtooth, and triangle-wave series.
The parity simplifications for even and odd functions.
Half-range sine and cosine expansions.
The function-space projection formula.
The least-squares optimality of Fourier coefficients.
Parseval’s theorem.
The midpoint value at a jump discontinuity.
The origin and behavior of the Gibbs phenomenon.
Conditions and consequences of term-by-term differentiation and integration.
The complex Fourier coefficient formula.
The equivalence of real and complex Fourier forms.
Fourier-series solutions of the wave and heat equations.
Harmonic decomposition of periodic forcing.
The interpretation of Fourier coefficients as a discrete spectrum.
The limiting transition from Fourier series to Fourier transforms.
The construction of wave packets and the distinction between phase and group velocity.

18 Notation used throughout the series

Unless a particular problem requires a different convention, the series will use:

T for period,
f₀ = 1∕T for fundamental frequency,
ω₀ = 2π∕T for fundamental angular frequency,
n for harmonic number,
a_n and b_n for real Fourier coefficients,
c_n for complex Fourier coefficients,
S_N for a finite Fourier partial sum,
L for the half-length of an interval [−L,L],
⟨f,g⟩ for a function inner product.

When the independent variable is time, the notation will use t. When it is a spatial coordinate, the notation will normally use x.

The distinction between cyclic frequency f and angular frequency ω will be maintained carefully:

ω = 2πf.

(63)

19 A note on proof depth

The series has two levels of proof.

The core lectures prove the identities needed for calculation from elementary calculus, algebra, and trigonometry.

More advanced statements about convergence can require real analysis beyond the intended starting level. In those cases the article will distinguish among:

a complete elementary derivation,
a physically motivated argument,
a theorem stated with its hypotheses,
an advanced proof deferred to a later article.

This prevents a self-learner from confusing an intuitive explanation with a rigorous theorem.

20 A note on numerical experiments

Fourier series are especially well suited to small numerical experiments.

Many entries will therefore include suggestions such as:

plot partial sums S_N(x) for increasing N,
numerically verify orthogonality integrals,
compare analytic coefficients with numerical quadrature,
measure Gibbs overshoot,
compare time-domain waveforms with harmonic spectra,
reconstruct PDE solutions with increasing numbers of modes.

The numerical experiment is not a substitute for derivation. It is a check on the derivation and a way to make the structure visible.

21 Suggested article-production order

Although the full roadmap contains 31 main lectures, the recommended first production block is:

FS01: Periodic Functions, Harmonics, and Why Fourier Series Exist.
FS02: Inner Products of Functions.
FS03: Orthogonality of Sines and Cosines.
FS04: Derivation of the Fourier Cosine Coefficients.
FS05: Derivation of the Sine and Constant Coefficients.
FS06: Fourier Series on a General Interval [−L,L].
FS07: First Complete Fourier Series: the Square Wave.
FS08: Sawtooth and Triangle Waves.
FS09: Even and Odd Functions.
FS10: Half-Range Sine and Cosine Series.

That block gives a self-learner a complete usable introduction before the sequence moves into deeper convergence and function-space structure.

22 Summary

The FS sequence develops Fourier analysis as a progression of ideas rather than a collection of formulas.

The early sequence establishes:

periodicity,
function inner products,
orthogonality,
projection,
Fourier coefficient derivation.

The middle sequence develops:

symmetry,
half-range expansions,
least-squares optimality,
Parseval’s theorem,
convergence,
Gibbs behavior,
complex Fourier series.

The later sequence applies those ideas to:

vibrating strings,
heat flow,
periodic forcing,
discrete spectra,
Fourier transforms,
wave packets and dispersion.

The advanced continuation then generalizes the same projection idea to Sturm-Liouville, Legendre, Bessel, and multidimensional eigenfunction expansions.

The next article is FS01, which begins at the beginning: what periodicity means, what a harmonic is, and why sums of sinusoids are plausible building blocks for complicated periodic motion.

References

[1] J. Fourier, The Analytical Theory of Heat, English translation of the 1822 work.

[2] R. V. Churchill and J. W. Brown, Fourier Series and Boundary Value Problems, McGraw-Hill.

[3] G. P. Tolstov, Fourier Series, Dover Publications.

[4] E. Kreyszig, Advanced Engineering Mathematics, Wiley.

[5] G. B. Arfken, H. J. Weber, and F. E. Harris, Mathematical Methods for Physicists, Academic Press.

[6] R. Haberman, Applied Partial Differential Equations with Fourier Series and Boundary Value Problems, Pearson.

"Fourier Series Roadmap, Motivation, and Learning Path" is owned by bloftin.
(view preamble)
