Inclined-Plane Dynamics

An inclined plane is one of the most useful Newtonian dynamics models because it forces us to separate geometry from physics. Gravity still points vertically downward, but the most convenient axes are usually rotated so that one axis lies along the plane and the other is Normal to it. Once that rotation is understood, a large class of problems becomes systematic rather than diagram-specific.

This article develops inclined-plane dynamics from the geometry of the coordinate transformation through Friction, applied forces, and connected bodies. The central lesson is that the familiar terms mg sin 𝜃 and mg cos 𝜃 are not additional forces. They are components of the single gravitational force mg in a rotated coordinate system.

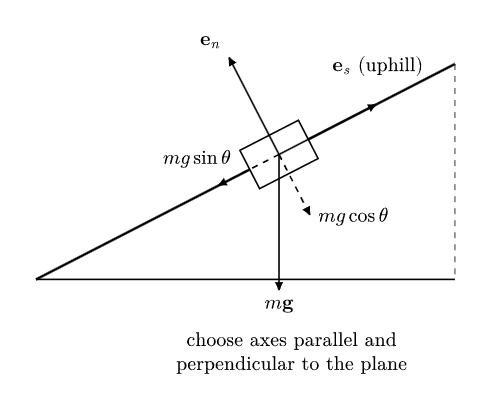

1 Choose axes that match the constraint

For a block constrained to remain on a straight plane inclined by angle 𝜃 above the horizontal, define

(1)

and

(2)

If the block remains in contact with the plane, its acceleration normal to the plane is usually zero:

(3)

That makes the normal equation especially useful for finding the normal force.

2 Deriving the gravitational components

Take ordinary horizontal and vertical unit vectors e_x and e_y. For a plane rising to the right,

(4)

and

(5)

The gravitational force is

(6)

Its component along the plane is the dot product

(7)

while its normal component is

(8)

Therefore the magnitudes are

(9)

The signs depend on the chosen positive directions. With uphill and outward taken as positive, both gravity components are negative.

3 The simplest case: a frictionless incline

Suppose gravity and the normal force are the only forces on the block. The normal equation is

(10)

For continuous contact with a straight plane, a_n = 0, so

(11)

Along the plane, using uphill as positive,

(12)

Hence

(13)

Equivalently, the acceleration magnitude down the plane is

(14)

The mass cancels. This is a consequence of both gravitational force and inertia being proportional to mass.

4 Why the normal force is not always mg cos 𝜃

The result N = mg cos 𝜃 is valid only when no other force has a component normal to the plane and the block has no normal acceleration.

Let an additional applied force F have components

(15)

The normal equation becomes

(16)

so

(17)

A force with an outward normal component reduces N. A force that presses the block into the plane has F_n < 0 and increases N.

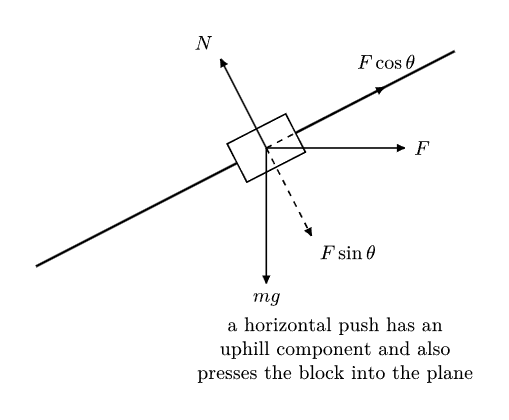

For example, a horizontal force F directed to the right has

(18)

Therefore

(19)

5 A general along-plane equation

With uphill positive, Newton’s second law along the plane can be written in a compact form:

(20)

For gravity, an applied tangential force F_s, and friction f,

(21)

where f is signed according to its actual direction.

This form is more reliable than memorizing a different equation for every diagram. Draw the forces, project each force onto the chosen axis, assign signs, and then apply Newton’s second law.

6 Static friction on an incline

If a block is at rest, the friction force is whatever value is required by equilibrium, provided the static limit is not exceeded.

With no other tangential force, equilibrium requires

(22)

up the plane. But static friction can supply at most

(23)

For the simple case N = mg cos 𝜃, equilibrium is possible when

(24)

or

(25)

At impending downhill slip,

(26)

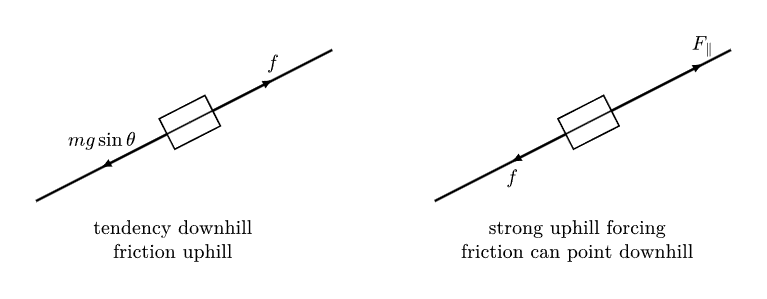

7 Friction direction comes from the tendency to slip

Gravity alone tends to make a block slide downhill, so friction points uphill. But this is not a universal rule. If another force is strong enough to make the block tend to move uphill, static friction points downhill.

A good procedure is to first solve the problem without assigning a friction direction by habit. Determine the direction in which the block would tend to slip if friction were absent; static friction opposes that tendency.

8 Kinetic friction and sliding motion

If the block slides, the elementary kinetic friction model is

(27)

If the block slides downhill and no other forces act along the plane, friction points uphill. With downhill taken as positive,

(28)

so

(29)

If the block is instead sliding uphill, both gravity and kinetic friction point downhill. Taking uphill as positive, the signed along-plane acceleration satisfies

(30)

Thus the acceleration is downhill with magnitude

(31)

Thus the same physical surface can produce different along-plane accelerations depending on the direction of motion because kinetic friction reverses direction when the relative sliding reverses.

9 Applied forces at arbitrary angles

Suppose an applied force of magnitude F makes an angle α above the plane. Its components are

(32)

If F_n points outward, the normal force is

(33)

If the block slides uphill, friction points downhill and the tangential equation is

(34)

The dependence of N on the normal component of the applied force is essential. One should not substitute N = mg cos 𝜃 automatically.

10 Connected bodies involving an incline

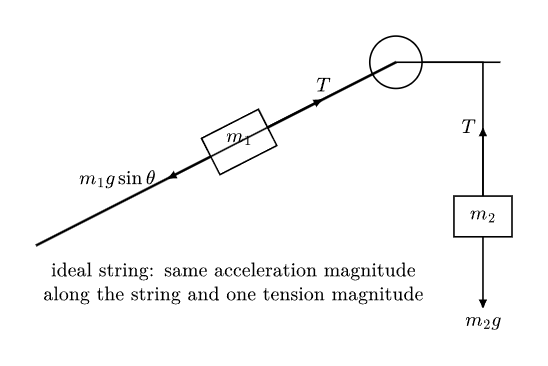

Inclined planes are often combined with the string and Pulley models of M02-05 and M02-06. Consider a block m₁ on a frictionless incline connected over an ideal fixed pulley to a hanging mass m₂.

Assume m₂ moves downward and m₁ moves uphill. For m₁,

(35)

For m₂,

(36)

Adding eliminates the internal tension:

(37)

Therefore

(38)

The sign checks the assumed direction. If the expression is negative, the actual acceleration is opposite the assumed direction.

Once a is known, the tension follows from either body’s equation, for example

(39)

For a rough incline, friction is included in the m₁ equation with the direction determined by the actual or impending motion.

11 Energy as a later cross-check

The force method is the focus here, but many incline results can later be checked with work and energy. For a frictionless block descending a vertical height h, the loss of gravitational potential energy becomes kinetic energy. For kinetic friction, the mechanical energy decreases by the friction work.

The Newtonian component equations remain essential because they also determine quantities such as normal force, tension, and instantaneous acceleration.

12 Common errors

1. mg sin 𝜃 and mg cos 𝜃 are not extra forces. They are components of the single Weight vector.
2. N = mg cos 𝜃 is conditional. Other forces can have normal components and change N.
3. Static friction is not automatically μ_sN. Solve for the required friction first, then compare with the limit.
4. Friction direction is not always uphill. It opposes relative slip or the tendency to slip.
5. A negative acceleration is not an algebra failure. It means the acceleration points opposite the chosen positive direction.
6. Do not mix coordinate systems mid-equation. Resolve all forces consistently into the same parallel and normal axes.

13 Worked example 1: frictionless block on an incline

A 5.00 kg block is released from rest on a frictionless 30.0^∘ incline. Find the normal force and acceleration.

The normal force is

(40)

The acceleration magnitude down the plane is

(41)

Thus

(42)

14 Worked example 2: rough incline, released from rest

An 8.00 kg block rests on a 25.0^∘ incline with

(43)

Determine whether the block remains at rest. If it slides, find its acceleration.

For static equilibrium the required friction is

(44)

The normal force is

(45)

so the maximum available static friction is

(46)

Since 33.2 > 24.9, the block cannot remain at rest. It slides downhill. The kinetic acceleration is

(47)

which gives

(48)

15 Worked example 3: horizontal push on an incline

A 10.0 kg block is on a frictionless 20.0^∘ incline. A horizontal force of 50.0 N pushes to the right, toward the uphill direction. Find the normal force and the acceleration along the plane.

The applied force components are

(49)

and

(50)

Thus the normal force is

(51)

so

(52)

Along the plane,

(53)

Numerically,

(54)

Therefore

(55)

16 Worked example 4: incline connected to a hanging mass

A 6.00 kg block on a frictionless 30.0^∘ incline is connected by a massless inextensible string over an ideal pulley to a hanging 4.00 kg mass. Find the acceleration and string tension.

Assume the 4.00 kg mass moves downward. The competing driving forces are

(56)

and

(57)

The system acceleration is

(58)

so

(59)

The positive result confirms the assumed direction: m₂ accelerates downward and m₁ accelerates uphill.

Using the incline block equation,

(60)

therefore

(61)

and

(62)

17 Practice problems

1. A 3.00 kg block slides on a frictionless 40.0^∘ incline. Find the normal force and the acceleration magnitude.
2. A block is at rest on a frictionless incline while held by a force parallel to the plane. If m = 12.0 kg and 𝜃 = 18.0^∘, find the required uphill force.
3. A 7.00 kg block is on a 35.0^∘ incline. A force of 60.0 N acts uphill parallel to the plane. The surface is frictionless. Find the acceleration, including its direction.
4. A block is released on a 22.0^∘ incline with μ _s = 0.45. Determine whether it begins to slide.
5. A block slides downhill on a 28.0^∘ incline with μ _k = 0.20. Find its acceleration.
6. A block is launched uphill on a 28.0^∘ incline with μ _k = 0.20. While it is still moving uphill, find the magnitude and direction of its acceleration.
7. A 10.0 kg block rests on a 20.0^∘ incline. A horizontal force of 40.0 N pushes toward the uphill direction. Find the normal force. Assume no normal acceleration.
8. For the system in Problem 7, suppose the surface is frictionless. Find the along-plane acceleration and state its direction.
9. A 5.00 kg block on a frictionless 25.0^∘ incline is connected over an ideal pulley to a hanging 3.00 kg mass. Find the acceleration and identify which mass moves downward.
10. A 4.00 kg block on a 30.0^∘ incline is connected over an ideal pulley to a hanging 2.00 kg mass. The incline has μ_k = 0.10, and the block is known to be sliding uphill. Find the acceleration magnitude and direction at that instant.

18 Answer check

1. (63)

   (64)

2. (65)

3. Taking uphill as positive,

   (66)

   so

   (67)

4. Static equilibrium requires tan 22.0^∘ ≤ 0.45. Since tan 22.0^∘ = 0.404, the block can remain at rest.

5. (68)

6. While the block moves uphill, both gravity and kinetic friction act downhill:

   (69)

7. (70)

   so

   (71)

8. (72)

   therefore

   (73)

9. Assume the hanging mass moves downward:

   (74)

   The result is positive, so the 3.00 kg mass moves downward.

10. Take uphill motion of the incline block and downward motion of the hanging mass as positive. Since the incline block is sliding uphill, friction acts downhill:

    (75)

    The right side evaluates to a negative acceleration,

    (76)

    Thus the acceleration is opposite the assumed positive direction: the incline block accelerates downhill and the hanging mass accelerates upward, with magnitude 0.566 m∕s².

19 Summary

For a plane inclined by 𝜃, choosing axes parallel and perpendicular to the surface converts the weight into the components

(77)

along the uphill axis and

(78)

along the outward normal axis. The fundamental equations are still simply Newton’s second law,

(79)

The expressions mg sin 𝜃 and mg cos 𝜃 come from geometry, not from new forces. The normal force must be determined from the normal equation, friction must be assigned from the actual or impending relative slip, and connected bodies must satisfy their string constraint. With those principles in place, inclined-plane problems become a systematic application of vectors and Newton’s laws.
