After a telescope collects radiation from an astronomical source, the radiation must be
detected and measured. The first detector used for astronomical observations was the
human eye, but it suffers from being connected to an imperfect recording and retrieving
device—the human brain. Photography and modern electronic detectors have eliminated the
quirks of human memory by making a permanent record of the information from the
cosmos.
The eye also suffers from having a very short integration time; it takes only a fraction
of a second to add Light energy together before sending the image to the brain. One
important advantage of modern detectors is that the light from astronomical objects can be
collected by the detector over longer periods of time; this technique is called “taking a long
exposure.” Exposures of several hours are required to detect very faint objects in the
cosmos.
Before the light reaches the detector, astronomers today normally use some type of instrument to
sort the light according to wavelength. The instrument may be as simple as colored filters,
which transmit light within a specified range of wavelengths. A red transparent plastic is
an everyday example of a filter that transmits only the red light and blocks the other
colors.
After the light passes through a filter, it forms an image that astronomers can then use to measure
the apparent brightness and color of objects. We will show you many examples of such
images in the later chapters of this book, and we will describe what we can learn from
them.
Alternatively, the instrument between telescope and detector may be one of several devices that
spread the light out into its full rainbow of colors so that astronomers can measure individual lines
in the spectrum. Such an instrument (which you learned about in the chapter on Radiation and
Spectra) is called a spectrometer because it allows astronomers to measure (to meter) the
spectrum of a source of radiation. Whether a filter or a spectrometer, both types of
wavelength-sorting instruments still have to use detectors to record and measure the properties of
light.
Photographic and Electronic Detectors
Throughout most of the twentieth century, photographic film or glass plates served as the prime
astronomical detectors, whether for photographing spectra or direct images of celestial objects. In
a photographic plate, a light-sensitive chemical coating is applied to a piece of glass that, when
developed, provides a lasting record of the image. At observatories around the world, vast
collections of photographs preserve what the sky has looked like during the past 100
years.
Photography represents a huge improvement over the human eye, but it still has limitations.
Photographic films are inefficient: only about 1% of the light that actually falls on the film
contributes to the chemical change that makes the image; the rest is wasted.
Astronomers today have much more efficient electronic detectors to record astronomical images.
Most often, these are charge-coupled devices (CCDs), which are similar to the detectors used in
video camcorders or in digital cameras (like the one more and more students have on their cell
phones) (see Figure 6.14). In a CCD, photons of radiation hitting any part of the detector
generate a stream of charged particles (electrons) that are stored and counted at the end
of the exposure. Each place where the radiation is counted is called a pixel (picture
element), and modern detectors can count the photons in millions of pixels (megapixels, or
MPs).

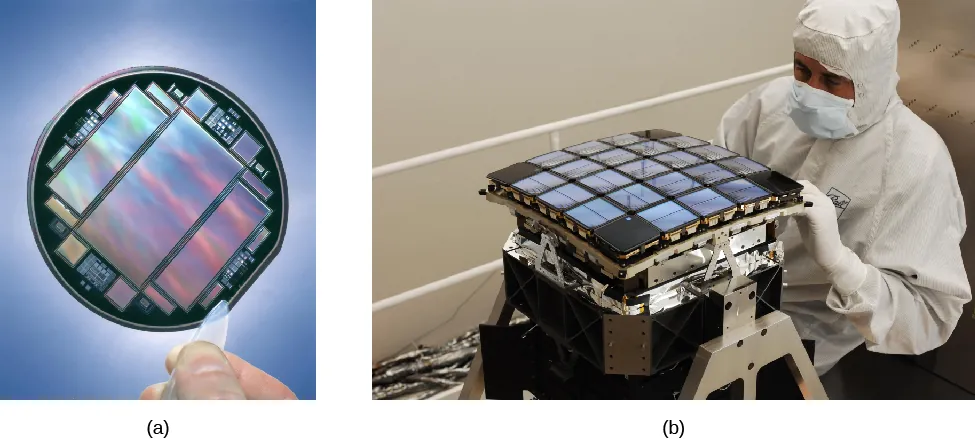

Figure 6.14 Charge-Coupled Devices (CCDs). (a) This CCD is a mere 300-micrometers thick
(thinner than a human hair) yet holds more than 21 million pixels. (b) This matrix of 42 CCDs
served the Kepler telescope. (credit a: modification of work by US Department of Energy; credit b:
modification of work by NASA and Ball Aerospace)
Because CCDs typically record as much as 60–70% of all the photons that strike them, and the
best silicon and infrared CCDs exceed 90% sensitivity, we can detect much fainter objects. Among
these are many small moons around the outer planets, icy dwarf planets beyond Pluto, and dwarf
galaxies of stars. CCDs also provide more accurate measurements of the brightness of astronomical
objects than photography, and their output is digital—in the form of numbers that can go directly
into a computer for analysis.
Infrared Observations
Observing the universe in the infrared band of the spectrum presents some additional challenges.
The infrared region extends from wavelengths near 1 micrometer (μm), which is about the long
wavelength sensitivity limit of both CCDs and photography, to 100 micrometers or longer. Recall
from the discussion on radiation and spectra that infrared is “heat radiation” (given off at
temperatures that we humans are comfortable with).
The main challenge to astronomers using infrared is to distinguish between the tiny amount of heat
radiation that reaches Earth from stars and galaxies, and the much greater heat radiated by the
telescope itself and our planet’s atmosphere.
Typical temperatures on Earth’s surface are near 300 K, and the atmosphere through which
observations are made is only a little cooler. According to Wien’s law (from the chapter on
Radiation and Spectra), the telescope, the observatory, and even the sky are radiating infrared
energy with a peak wavelength of about 10 micrometers. To infrared eyes, everything on Earth is
brightly aglow—including the telescope and camera (Figure 6.15). The challenge is to detect faint
cosmic sources against this sea of infrared light. Another way to look at this is that an astronomer
using infrared must always contend with the situation that a visible-light observer would face
if working in broad daylight with a telescope and optics lined with bright fluorescent
lights.

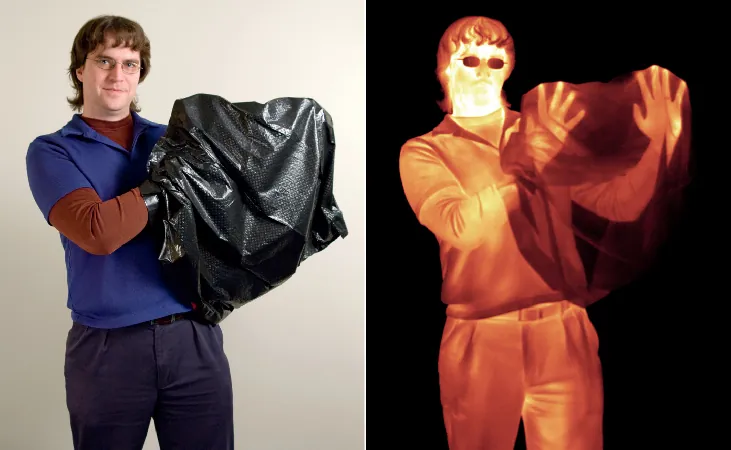

Figure 6.15 Infrared Eyes. Infrared waves can penetrate places in the universe from which light is
blocked, as shown in this infrared image where the plastic bag blocks visible light but not infrared.
(credit: NASA/JPL-Caltech/R. Hurt (SSC))
To solve this problem, astronomers must protect the infrared detector from nearby radiation, just
as you would shield photographic film from bright daylight. Since anything warm radiates infrared
energy, the detector must be isolated in very cold surroundings; often, it is held near absolute zero
(1 to 3 K) by immersing it in liquid helium. The second step is to reduce the radiation emitted by
the telescope structure and optics, and to block this heat from reaching the infrared
detector.
Link to Learning
Check out The Infrared Zoo to get a sense of what familiar objects look like with infrared
radiation. Slide the slider to change the wavelength of radiation for the picture, and click the arrow
to see other animals.
Spectroscopy
Spectroscopy is one of the astronomer’s most powerful tools, providing information about the
composition, temperature, motion, and other characteristics of celestial objects. More than half of
the time spent on most large telescopes is used for spectroscopy.
The many different wavelengths present in light can be separated by passing them through a
spectrometer to form a spectrum. The design of a simple spectrometer is illustrated in Figure 6.16.
Light from the source (actually, the image of a source produced by the telescope) enters the
instrument through a small hole or narrow slit, and is collimated (made into a beam of parallel
rays) by a lens. The light then passes through a prism, producing a spectrum: different wavelengths
leave the prism in different directions because each wavelength is bent by a different amount
when it enters and leaves the prism. A second lens placed behind the prism focuses
the many different images of the slit or entrance hole onto a CCD or other detecting
device.
This collection of images (spread out by color) is the spectrum that astronomers can then analyze
at a later point. As spectroscopy spreads the light out into more and more collecting bins, fewer
photons go into each bin, so either a larger telescope is needed or the integration time must be
greatly increased—usually both.

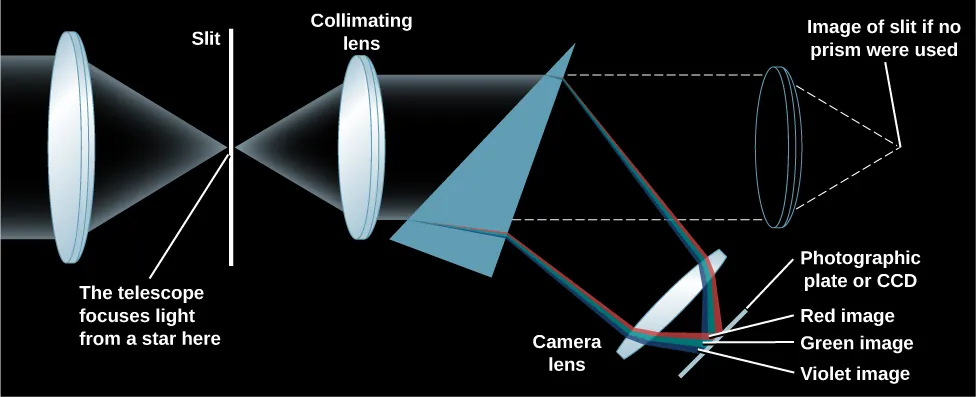

Figure 6.16 Prism Spectrometer. The light from the telescope is focused on a slit. A prism (or
grating) disperses the light into a spectrum, which is then photographed or recorded
electronically.
In practice, astronomers today are more likely to use a different device, called a grating, to disperse
the spectrum. A grating is a piece of material with thousands of grooves on its surface. While it
functions completely differently, a grating, like a prism, also spreads light out into a
spectrum.
